Can stainless steel elbows be used in high - pressure gas pipelines?
In the realm of pipeline systems, especially those dealing with high - pressure gas, the choice of components is of utmost importance. As a seasoned supplier of stainless steel elbows, I am often asked whether stainless steel elbows can be used in high - pressure gas pipelines. This blog post aims to delve into this question in detail.
Characteristics of Stainless Steel Elbows
Stainless steel elbows are well - known for their remarkable properties. Firstly, stainless steel is highly corrosion - resistant. In high - pressure gas pipelines, the gas may contain various impurities such as moisture, sulfur compounds, and other corrosive substances. Over time, these substances can cause significant damage to the pipeline components. Stainless steel, with its chromium - rich oxide layer on the surface, can effectively resist corrosion, ensuring the long - term integrity of the pipeline system.
Secondly, stainless steel has excellent mechanical properties. It offers high strength, which is crucial for withstanding the high pressures in the gas pipelines. The strength of stainless steel allows it to maintain its shape and structural integrity even under extreme pressure conditions. Moreover, stainless steel has good ductility, which means it can deform to a certain extent without fracturing. This property is beneficial in absorbing shock and vibration in the pipeline, reducing the risk of sudden failures.
Suitability for High - Pressure Gas Pipelines
- Pressure Resistance
The pressure rating of a pipeline component is a key factor in determining its suitability for high - pressure applications. Stainless steel elbows are available in a wide range of wall thicknesses and schedules, which can be selected according to the specific pressure requirements of the gas pipeline. For instance, in a high - pressure natural gas pipeline where the operating pressure can reach several megapascals, a stainless steel elbow with a thick wall and a high - strength grade can be used. These elbows are designed and manufactured to meet strict industry standards for pressure resistance, ensuring that they can safely contain the high - pressure gas. - Leakage Prevention

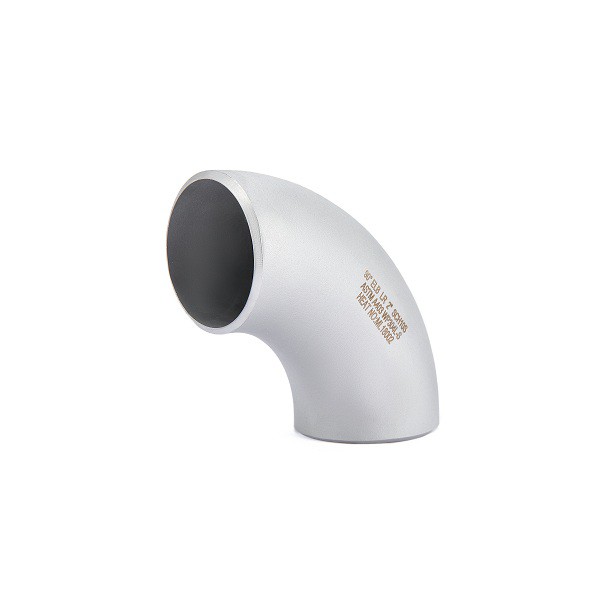

In high - pressure gas pipelines, preventing leakage is of utmost importance. A small leak can not only lead to the loss of valuable gas resources but also pose a significant safety hazard. Stainless steel elbows are typically welded or joined using reliable methods such as 90 degree butt weld. These welding techniques create a strong and tight seal, minimizing the risk of gas leakage. Additionally, the smooth inner surface of stainless steel elbows reduces the likelihood of gas turbulence and pressure fluctuations, further enhancing the overall safety and efficiency of the pipeline. - Temperature Resistance
High - pressure gas pipelines may operate under a wide range of temperatures. Stainless steel has good thermal stability, which means it can maintain its mechanical properties over a broad temperature range. Whether the pipeline is exposed to extremely cold temperatures in arctic regions or high temperatures in industrial settings, stainless steel elbows can perform reliably. This temperature resistance is essential for ensuring the long - term performance of the pipeline in various environmental conditions.
Applications in High - Pressure Gas Pipelines
- Oil and Gas Industry
In the oil and gas industry, high - pressure gas pipelines are used for transporting natural gas, refined products, and other hydrocarbons. Stainless steel elbows are widely used in these pipelines, especially in offshore platforms and onshore processing plants. For example, in an offshore gas production facility, stainless steel elbows are used to connect different sections of the pipeline, allowing the high - pressure gas to flow smoothly from the wellhead to the processing equipment. - Industrial Gas Systems
Industrial gas systems, such as those used in chemical plants and power generation facilities, also require high - pressure gas pipelines. Stainless steel elbows are suitable for these applications due to their corrosion resistance and pressure - bearing capabilities. In a chemical plant, where corrosive gases are often transported at high pressures, stainless steel elbows can ensure the safe and reliable operation of the pipeline system.
Types of Stainless Steel Elbows for High - Pressure Gas Pipelines
- Stainless Steel Tubing Elbows
Stainless steel tubing elbows are commonly used in high - pressure gas pipelines. They are available in different sizes and angles, providing flexibility in pipeline design. These elbows are typically made from seamless or welded stainless steel tubing, and they can be easily integrated into the pipeline system. Seamless tubing elbows have the advantage of a uniform structure, which enhances their pressure resistance and corrosion resistance. - Stainless Steel Seamless Elbow
Stainless steel seamless elbows are another popular choice for high - pressure gas pipelines. The seamless manufacturing process eliminates the potential weak points associated with welded seams, making them more reliable in high - pressure applications. Seamless elbows can withstand higher pressures and are less prone to leakage, ensuring the safety and integrity of the pipeline.
Considerations and Limitations
- Cost
One of the main considerations when using stainless steel elbows in high - pressure gas pipelines is the cost. Stainless steel is generally more expensive than other materials such as carbon steel. However, the long - term benefits of using stainless steel, such as its corrosion resistance and durability, often outweigh the initial cost. When evaluating the cost - effectiveness, it is important to consider the total life - cycle cost of the pipeline, including maintenance, replacement, and downtime costs. - Compatibility with Other Components
In a pipeline system, the stainless steel elbows need to be compatible with other components such as valves, flanges, and pipes. Compatibility issues can lead to problems such as galvanic corrosion and mechanical stress. Therefore, it is essential to ensure that all components are made from compatible materials and are properly designed and installed to work together seamlessly.
In conclusion, stainless steel elbows can indeed be used in high - pressure gas pipelines. Their excellent corrosion resistance, high strength, and good pressure - bearing capabilities make them a reliable choice for ensuring the safety and efficiency of the pipeline system. However, it is important to carefully consider the specific requirements of the pipeline, including pressure, temperature, and gas composition, and to select the appropriate type and grade of stainless steel elbows. If you are in the process of planning or upgrading a high - pressure gas pipeline and are interested in our stainless steel elbows, I encourage you to contact us for further discussion and procurement. We have a wide range of stainless steel elbows to meet your diverse needs and can provide professional advice to ensure the success of your project.
References
- ASME B31.8: Gas Transmission and Distribution Piping Systems
- API 5L: Specification for Line Pipe
- ASTM A312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
